Features:
Support multi-languages (Chinese, English, Polish, French, Arabic, Russian, etc);
PCF79XX remote renew (already supported BMW E series and F series, will be added continuously);
Read and Write MC9S12XE series MCU stably (5M48H/1N35H/2M53J/3M25J etc);
More MCU types will be added continuously (MC68HC05, TMS370, MAC7XXX etc);
ECU types will be continuously added;
Various vehicle connection diagrams will be continuously added;
Script function updata will be coming soon.
Packing List:
1. VVDI Prog device
USB Port: USB 2.0, Extra Power: 12V/2A, Power: 1W
2. MC9S12 Reflash Cable V1
DB25 port, the cable can read and write Motorola(Freescale)'s MC9S08, MC9S12 series transponder.
3. MCU Reflash Cable V3
DB25 port, cable read and write most of transponder.
4. ECU Reflash Cable
DB25 port, read and write engine computer according to CAN or K cable.
5. USB Cable
Connect VVDI PROG and computer.
6. OP16 EEPROM Adapter(no need to solder)
Non-welding red and write common .
7. EEPROM CLIP Adapter
Welding read and write common EEPROM transponder.
VVDI Prog Programmer Unit Description:
1.16 Pin DIP socket Function:
Read EEPROM chips Use method: Follow the image direction when insert the DIP chip (PIN1 as yellow point show as the picture);
SOP chip need soldering on 16Pin adaptor first, then insert the chip follow the image direction
2. MCU Reflash Cable
Function: Read & Write MC68HC(9)12, V850, H8X, R5C series chips,current version is V2
Use method: Soldering the line on pin of chip before read & write
Notes:
(1) Please check all connection lines,ensure correct and reliable connection
(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.
3. ECU Reflash Cable
Function: Read & Write engine ECU
Use method: Connect the ECU and R&W
Notes: Please check all connection lines, ensure correct and reliable connection

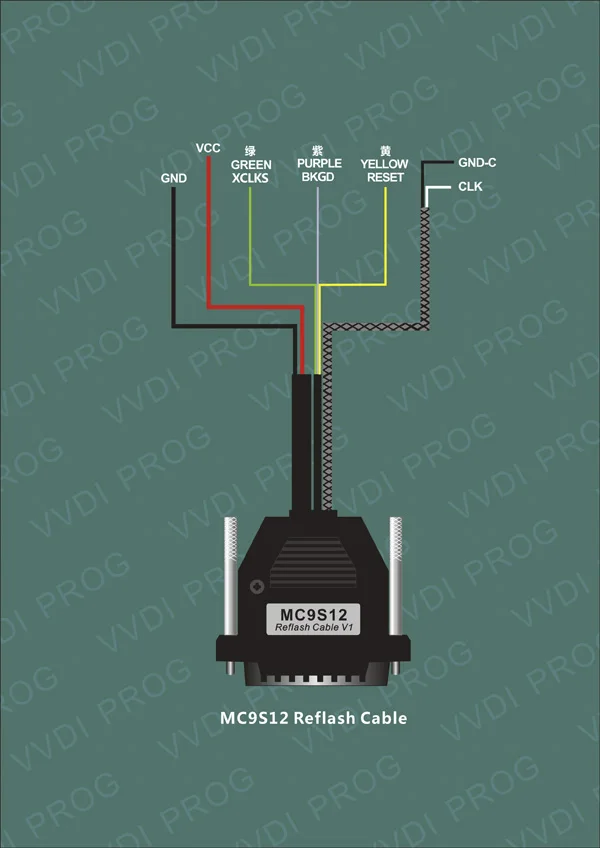

4.MC9S12 Reflash Cable
Function: Read & Write MC9S08, MC9S12 series chips, current version is V1
Use method: Soldering the line on pin of chip before read & write
Notes:
(1) Please check all connection lines,ensure correct and reliable connection.
(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.
